FIGURE 4

ID

ZDB-FIG-250603-39

Publication

Ohyanagi et al., 2025 - Genetic Mechanism That Defines the Characteristic Neurogenesis Patterns in the Neural Plate Using Hes/her Genes During Early Vertebrate Development

Other Figures

All Figure Page

Back to All Figure Page

FIGURE 4

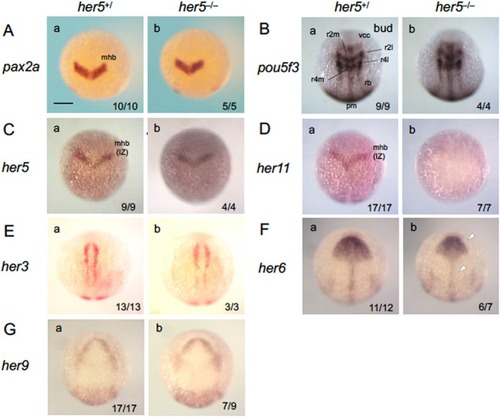

Expression of brain regionalization genes and her genes in her5 mutant embryos. Embryos from heterozygous mating (her5^+/Δ8) were examined for the expression of MHB‐forming genes and her genes at the bud stage by WISH, followed by genotyping. Open arrowheads show weak downregulation. See the legends to Figures 1 and 3 for abbreviations. Numbers of the embryos with the indicated expression patterns and total scored embryos are shown in the bottom‐right. her5^+/− embryos were indistinguishable from her5^+/+ embryos. Thus, both were scored together and referred to as her5^+/. Images for her5^+/+ embryos are shown as representatives. Scale bar, 200 μm.

Expression Data

Genes:	her3 her5 her6 her9 her11 pax2a pou5f3
Fish:	WT her5^sud27/sud27
Anatomical Terms:	midbrain hindbrain boundary neural keel nervous system presumptive intervening zone
Stage:	Bud

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	her5^sud27/sud27
Observed In:	midbrain hindbrain boundary neural keel presumptive intervening zone
Stage:	Bud

Phenotype Detail
