Fig 4

Evaluation of neuromuscular junction integrity in MZKOs.

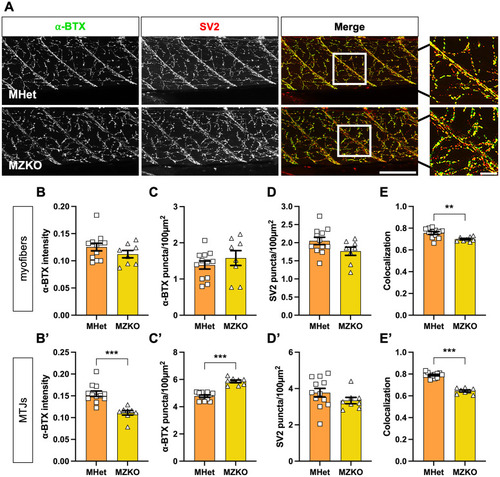

A: Maximum intensity projections of muscle stained with α-bungarotoxin (BTX) to label Acetylcholine receptors on the sarcolemma (left), anti-SV2 antibody to label motor neuron terminals (middle), and merged images to evaluate colocalization (right) (20X magnification, scale bars: 100 µm for main panel, 20 µm for insets). B–D: Quantifications of NMJs within the myotomes showing no significant differences in α-BTX intensity (B), α-BTX puncta density (C), or SV2 puncta density (D), but a significant reduction in colocalization (E) in MZKOs (**p = 0.004). B’–D’: Quantifications of neuromuscular junctions at the myotendinous junctions showing significantly reduced α-BTX intensity (B’), significantly increased α-BTX puncta density (C’), no change in SV2 puncta density (D’), and a significant reduction in colocalization (E’) (***p < 0.001).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	pomgnt2^nj14/nj14 (EKW)
Observed In:	muscle synapse
Stage:	Days 7-13
