ZFIN Image: Ercanbrack et al., 2024, FIGURE 3


Figure Caption

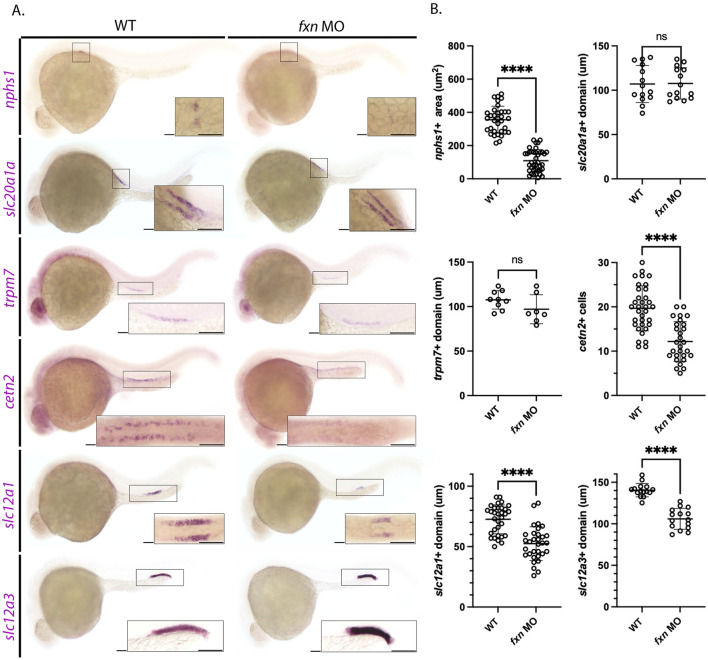

FIGURE 3

Pronephros segment development is significantly disrupted in fxn-deficient zebrafish embryos. (A) WISH experiments reveal that fxn is required for the proper formation of the podocytes, multiciliated cells (MCCs), distal early, and distal late tubule. The previously mentioned domains were visualized via the nphs1,cetn4, slc12a1, and slc12a3 probes, respectively. Formation of the proximal convoluted and straight tubules, as assessed by expression of slc20a1a and trpm7 revealed no significant differences between wild-type embryos and fxn morphants. Scale bars = 50 um. Each boxed lateral region in the embryos corresponds to the inset, which shows a dorsal view of that corresponding area for nphs1, slc20a1a, cetn2, and slc12a1 or a lateral view of the corresponding area for trpm7 and slc12a3. (B) Unpaired t-tests of the phenotypes revealed by WISH. ****p < 0.0001.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front Cell Dev Biol
