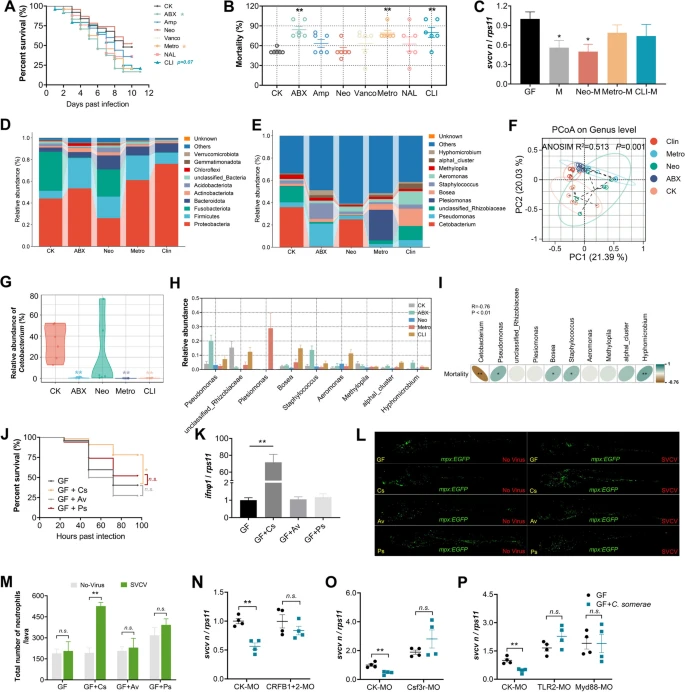

Fig. 5 C. somerae recapitulates the antiviral effect of intestinal microbiome. A–B Effect of antibiotics cocktail or single antibiotic feeding on SVCV infection in adult zebrafish. A Survival curve (n = 25). B Mortality (n = 6). C Viral replication in GF zebrafish or GF zebrafish colonized with microbiota derived from adult zebrafish fed with control or antibiotic(s) diet (n = 3, pool of 30 zebrafish larvae per sample). Mock, GF group; M, control microbiota; Neo-M, microbiota from zebrafish fed neomycin; Metro-M, microbiota from zebrafish fed metronidazole; CLI-M, microbiota from zebrafish fed clindamycin. The composition of intestinal microbiota of adult zebrafish fed control or antibiotic(s) diet at phylum (D) and genus level (E) (n = 6, pool of 6 zebrafish per sample). F Principal coordinate analysis (PCoA) of all samples by weighted UniFrac distance at the genus level (n = 6, pool of 6 fish per sample). G The relative abundance of Cetobacterium in intestinal microbiota of adult zebrafish fed control or antibiotic(s) diet (n = 6, pool of 6 zebrafish per sample). H The relative abundance of specific taxa at genus level among groups. I Correlation analysis between the mortality of zebrafish and the relative abundance of genuses (n = 6, pool of 6 fish per sample). J Survival curve of GF zebrafish or GF zebrafish mono-colonized with C. somerae (GF + CS), Aeromonas veronii (GF + AV), or Plesiomonas shigelloides (GF + PS) following SVCV infection (n = 60). K IFNΦ1 expression of GF zebrafish or GF zebrafish mono-colonized with indicated commensal bacterium. Expression was detected at 48 hpi (n = 4, pool of 30 zebrafish larvae per sample). L–M Neutrophils response in mock or SVCV-infected GF Tg (mpx:EGFP) zebrafish or GF counterparts mono-colonized with indicated commensal bacterium. L Confocal imaging of transgenic zebrafish. M Neutrophil numbers (n = 3). Samples were collected for imaging at 48 hpi. Scale bar, 500 μm. Effect of type I IFN receptors knockdown (CRFB1 + CRFB2 MO) (N), depletion of neutrophils (Csf3r MO) (O), and TLR2 and Myd88 knockdown (P) on SVCV infection in GF zebrafish or GF counterparts mono-colonized with C. somerae (n = 4, pool of 30 zebrafish larvae per sample). Viral replication was detected at 48 hpi. A and J log-rank test; B, C, G, H, K one-way ANOVA followed by Dunnett’s multiple comparisons test; M–P unpaired t-test. *p < 0.05, **p < 0.01, n.s., not significant
Figure Caption
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Microbiome
