Fig. S2
- ID
- ZDB-IMAGE-180502-20
- Genes
- Publication
- Barsh et al., 2017 - Vagus Motor Neuron Topographic Map Determined by Parallel Mechanisms of hox5 Expression and Time of Axon Initiation
- All Figures
- Figures for Barsh et al., 2017
|
Figure Caption
Fig. S2

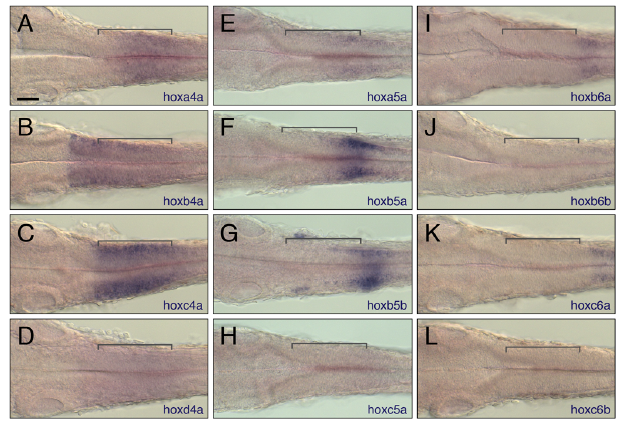

Expression of hox genes in rhombomere 8. Related to Figure 3. (A-L) RNA in situ hybridization at 27 hpf showing hox gene expression in purple. Brackets indicate mX territory. hoxa5a, hoxb5a, and hoxb5b are all expressed in posterior but not anterior r8. Dorsal view with anterior left, scale bars 50 um.
