Fig 6

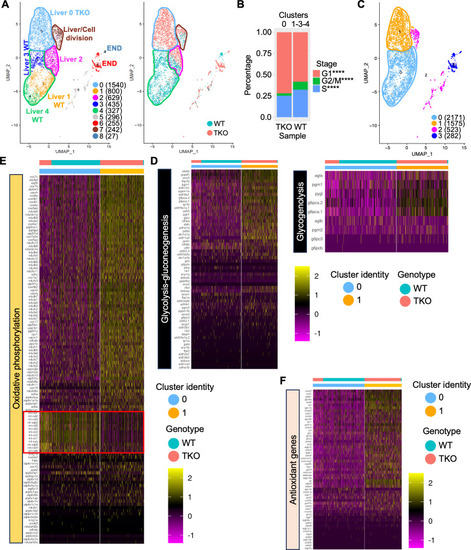

Single cell RNA-sequencing of 4 dpf WT and TKO dsRED

⁺cells.(A) (Left) UMAP showing the clustering of merged WT and TKO dsRED⁺ cells. Liver and endocrine pancreatic cell cluster identity has been annotated in the plot. The total number of cells in each cluster in shown in parenthesis. (Right) UMAP displaying the projection of the two genotypes (WT and TKO) merged for the analysis. Major liver clusters have been highlighted. (B) Analysis of the cell cycle using Seurat CellCycleScoring function in WT and TKO hepatic cells. Statistical significance was determined using Fisher’s exact test. **** < 0.0001. (C-F) Heat maps showing expression of metabolic genes involved in glycolysis/gluconeogenesis and glycogenolysis (D), oxidative phosphorylation (E), and antioxidant genes (F) at single-cell level in WT and TKO liver cell clusters highlighted in the specific UMAP (C). Numbers in parenthesis indicate the total number of cells for each cluster.
