Fig. S4

Expression of spx1 in dorsal Hb.

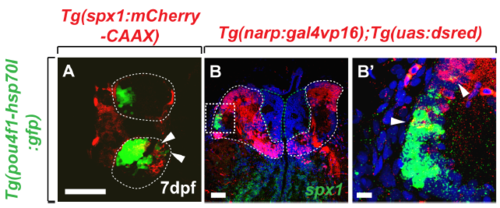

(A) Dorsal view of the Hb region in Tg(spx1:mCherry-CAAX);Tg(pou4fl-hsp70l:gfp) larva at 7 dpf. Arrowheads indicate the spx1 and pou4fl+ cells in Hb. (B, B’) Transverse section of the Hb in Tg(narp:gal4vp16);Tg(uas:dsred) adult brain labelled by spx1 RNA and dorsal is to the top. (B’) is a high magnification image of the box area in (B). Arrowhead indicates the spx1 and narp+ cells in lateral division of the dorsal Hb. Abbreviation: Hb, habenula; IPN, interpeduncular nucleus. Scale bar: 50 μm in A and B. 10 μm in B’.
