Fig. 1
- ID
- ZDB-FIG-171227-39
- Publication
- Pimtong et al., 2014 - Drl.3 governs primitive hematopoiesis in zebrafish
- Other Figures
- (all 11)
- All Figure Page
- Back to All Figure Page

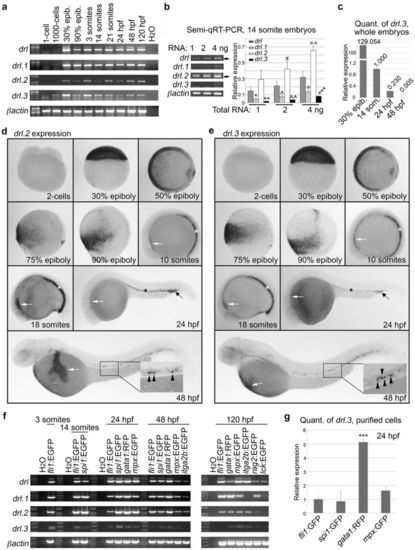

Drl gene family members are expressed throughout embryonic development and in multiple hematopoietic lineages. (a) RT-PCR analysis of the drl family members and β−actin from pooled embryos at the indicated ages. (b) Semi-quantitative (q) RT-PCR of drl genes and β-actin from pooled 14 somite stage embryos (left panel). Arrows indicate the bands that were used for quantitation, which is shown in the right panel. Compared to drl, *P = 0.0150, **P = 0.0052, |
Genes: | |
---|---|
Fish: | (all 8) |
Anatomical Terms: |
|
Stage Range: | 1-cell to Day 5 |
