Figure 5.

ID

ZDB-IMAGE-260427-62

Antibodies

Ab5-rho

Publication

Gao et al., 2026 - PCYT1A Hypophosphorylation Underlies Retinal Lipid Dysregulation in CERKL Retinitis Pigmentosa and Is Therapeutically Reversed by Phosphatidylcholine

All Figures

Figures for Gao et al., 2026


Figure Caption

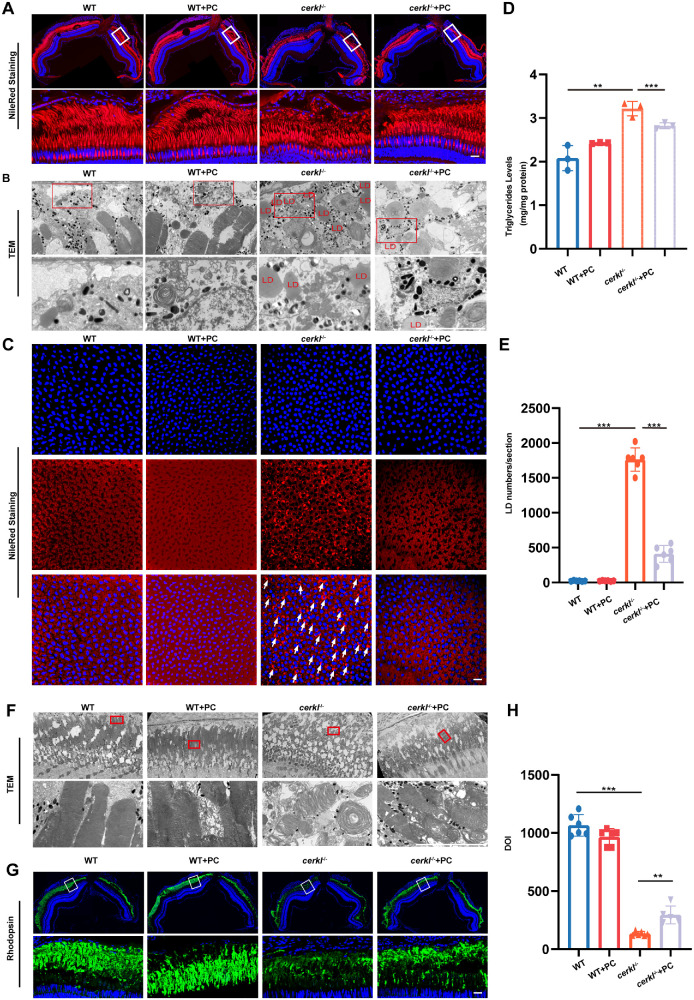

Figure 5.

PC addition alleviates LD accumulation and photoreceptor dysfunction in cerkl^−/− zebrafish. (A) Confocal imaging of LDs in WT and cerkl^−/− retina with PC treatment zebrafish by Nile Red staining. Blue represents DAPI and red represents Nile Red staining. RPE, retinal pigment epithelium; ONL, outer nuclear layer; INL, inner nuclear layer. Scale bars = 10 µm. (B) TEM analysis of LDs in WT and cerkl^−/− retina with PC treatment zebrafish. LD, lipid droplets. Scale bars = 10 µm. (C) Confocal imaging of LDs in WT and cerkl^−/− RPE with PC treatment zebrafish by Nile Red staining. Blue represents DAPI and red represents Nile Red staining. Scale bars = 10 µm. (D) TG levels in WT and cerkl^−/− retina with PC treatment zebrafish by TGs analysis kits. **, P < 0.01, ***, P < 0.001. (E) Quantitative analysis of LDs is shown in D. ***, P < 0.001. (F) TEM analysis of photoreceptors in WT and cerkl^−/− retina with PC treatment zebrafish. Bars = 10 µm. (G) Immunofluorescence analysis of retinas with PC treatment zebrafish using anti-Rhodopsin antibody. Scale bars = 10 µm. (H) Quantitative analysis of the rhodopsin is shown in G. **, P < 0.01, ***, P < 0.001.

Figure Data

Expression / Labeling details

Phenotype details
