Figure 1.

ID

ZDB-IMAGE-260427-58

Antibodies

Ab8-tjp1

Publication

Gao et al., 2026 - PCYT1A Hypophosphorylation Underlies Retinal Lipid Dysregulation in CERKL Retinitis Pigmentosa and Is Therapeutically Reversed by Phosphatidylcholine

All Figures

Figures for Gao et al., 2026


Figure Caption

Figure 1.

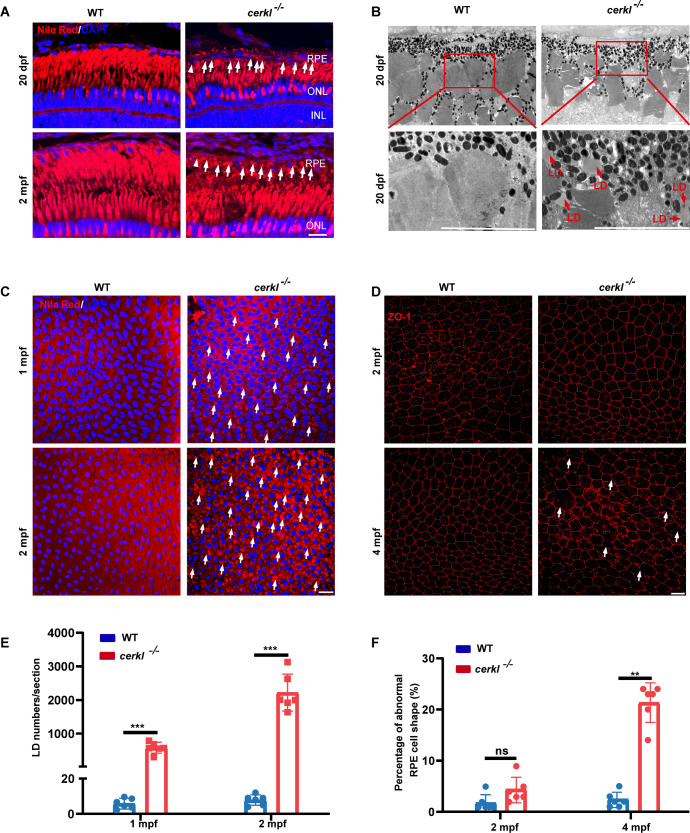

CERKL ablation triggers progressive lipid droplet pathology in RPE. (A) Confocal imaging of LDs in WT and cerkl^−/− retina at 20 dpf and 2 mpf zebrafish by Nile Red staining. Blue represents DAPI and red represents Nile Red staining. RPE, retinal pigment epithelium; ONL, outer nuclear layer; INL, inner nuclear layer; Scale bars = 10 µm. (B) TEM analysis of LDs in WT and cerkl^−/− zebrafish retina at 20 dpf. LD, lipid droplet. Scale bars = 10 µm. (C) Confocal imaging of LDs in WT and cerkl^−/− RPE at 1 mpf and 2 mpf zebrafish by Nile Red staining. Blue represents DAPI and red represents Nile Red staining. Scale bars = 10 µm. (D) Immunofluorescence analysis of RPE cells from WT and cerkl^−/− zebrafish at 2 mpf and 4 mpf using anti-ZO-1 antibody. Scale bars = 10 µm. (E) The quantitative analysis of LD numbers shown in C. The results are shown as mean ± SEM. ***, P < 0.001. (F) The numbers of abnormal RPE cells were qualified for each of the images in D. The results are shown as mean ± SEM. **, P < 0.01.

Figure Data

Expression / Labeling details

Phenotype details
