Fig. 1

ID
ZDB-IMAGE-250528-53
Source
Figures for Wang et al., 2025
Figure Caption

Fig. 1

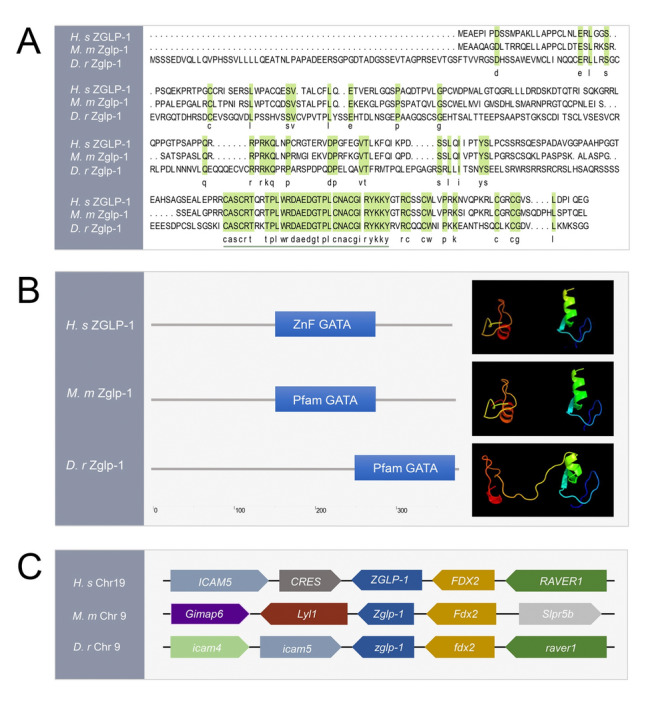

Zglp-1 zinc finger domains are well conserved in vertebrates. A Sequence alignment of the ZGLP-1 proteins. Amino acids that are identical are denoted by black letters, whereas those with a higher degree of conservation are represented by green background. Additionally, the sequences corresponding to the zinc finger domain are underlined for emphasis. B Comparison of ZGLP-1 proteins. The secondary structural details of ZGLP-1 proteins determined by employing the SMART program. Utilizing PHYRE2 analysis, the three-dimensional configurations of ZGLP-1 proteins from humans, mice, and zebrafish were predicted. C A syntenic map was crafted to depict the specific genomic region where zglp-1 is located within the chromosomes of zebrafish and other vertebrates. Rectangles denote genes, and the orientation of each rectangle signifies the transcriptional direction of the gene. Sequence source: Homo sapiens ZGLP-1: NP_001096637.1; Mus musculus Zglp-1: NP_001096638; Danio rerio Zglp-1: NP_001038914.1
