Fig. 3

ID
ZDB-IMAGE-241202-8
Source
Figures for García-Pupo et al., 2024
Figure Caption

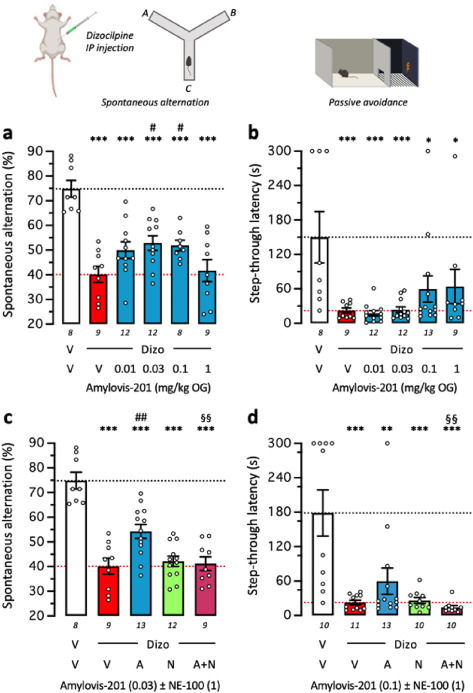

Fig. 3 Amylovis-201 attenuated Dizocilpine-induced learning impairment in mice through σ1 agonism: dose-response effects in the (a) spontaneous alternation and (b) step-through passive avoidance. (c,d) Blockade of Amylovis-201 effect by NE-100 in each test. Mice received Amylovis-201 (0.01–1 mg/kg PO) 10 min before Dizocilpine (0.15 mg/kg IP), 20 min before the Y-maze session in (a,c) or passive avoidance training in (b,d). In (c,d), NE-100 was administered at 1 mg/kg IP simultaneously with the lowest active dose of Amylovis-201, i.e., 0.03 mg/kg PO in the Y-maze in (d) and 0.1 mg/kg in the passive avoidance test in (e). Abbreviations: V, vehicle solution (physiological saline); Dizo, Dizocilpine; A, Amylovis-201; N, NE-100. Data show mean ± SEM of the number of animals indicated within or below the columns. ANOVAs: F(5,50) = 12.19, P < 0.0001 in (a); F(4,46) = 22.76, P < 0.0001 in (c). Kruskal-Wallis ANOVAs: H = 19.29, P = 0.0017 in (b); H = 23.86, P < 0.0001 in (d). ∗ P < 0.05, ∗∗ P < 0.01, ∗∗∗ P < 0.001 vs. (V+V)-treated mice; # P < 0.05, ## P < 0.01 vs. (Dizo+V)-treated mice; oo P < 0.01 vs. (Dizo+A)-treated mice; Dunnett's test in (a,c), Dunn's test in (b,d).

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Acta Pharm Sin B
