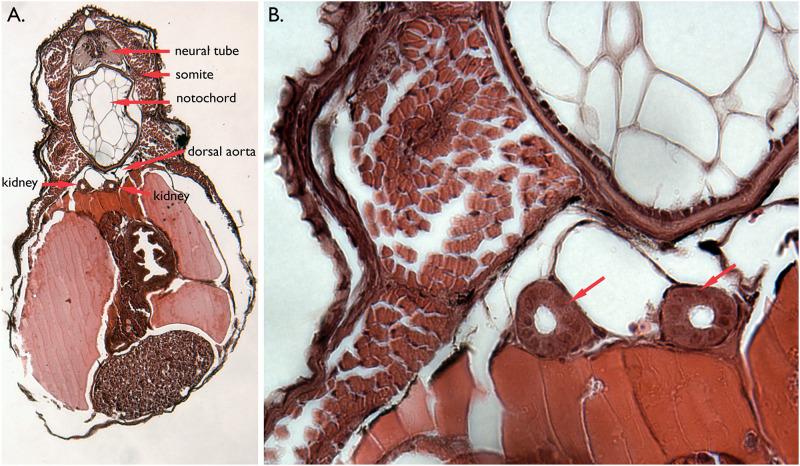

Fig 3 Internal anatomy of mid-hatching stage bay pipefish.

A. Transverse section of a JB4 plastic embedded specimen. Various dorsal tissues surrounding the kidney tubules are labelled. B. Enlargement of panel A. The red arrows indicate the kidney tubules.
