Fig. 5

ID

ZDB-IMAGE-210311-12

Genes

sox10
TagRFP

Publication

Castellanos et al., 2021 - Knockdown of hspg2 is associated with abnormal mandibular joint formation and neural crest cell dysfunction in zebrafish

All Figures

Figures for Castellanos et al., 2021


Figure Caption

Fig. 5

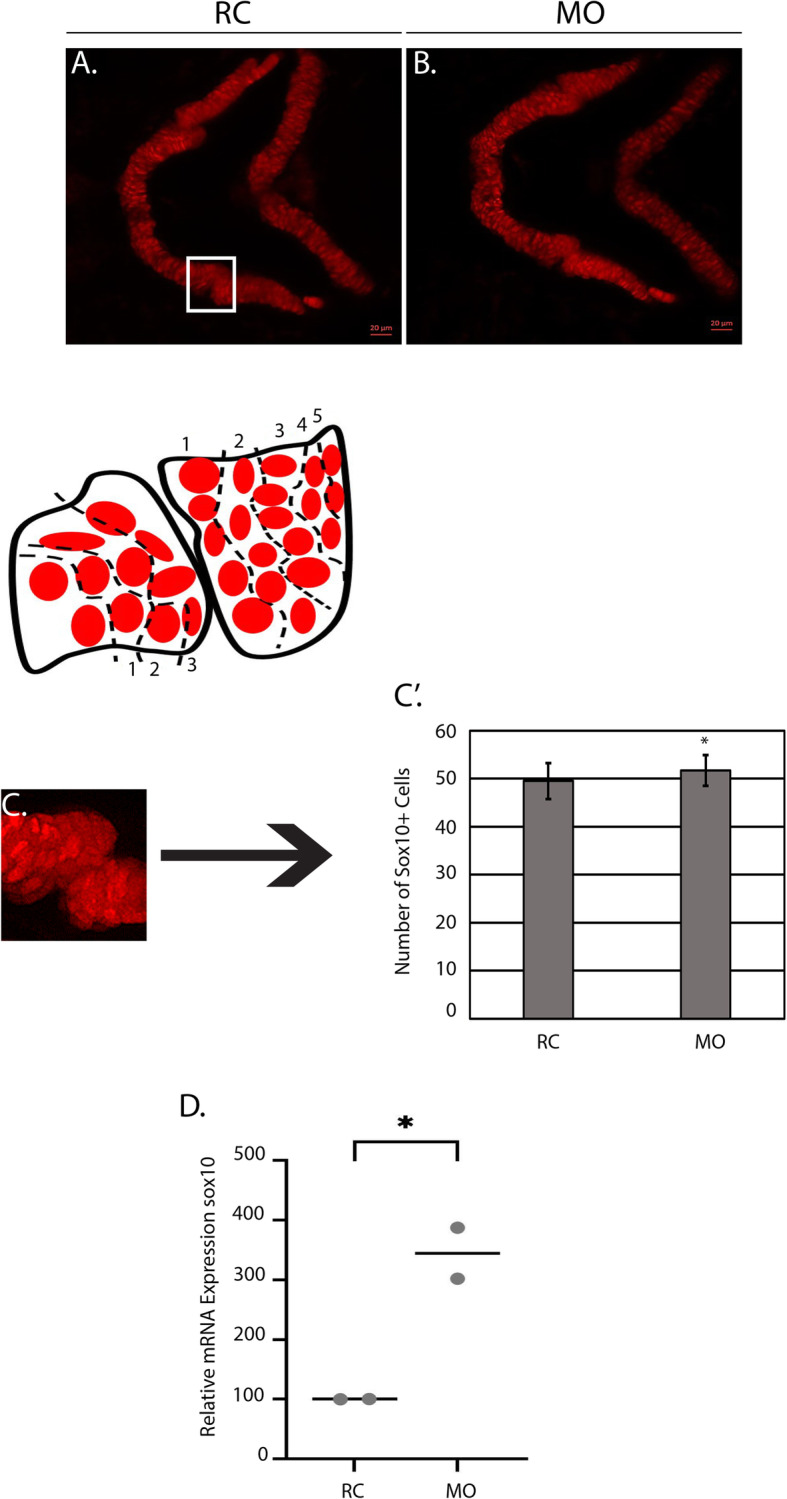

The number of Sox10⁺ cells is increased in morphants at 3 DPF. a-bTg(sox10:TagRFP) random control (RC) and morphant (MO) larvae (N = 10 per group) were mounted in agarose and confocal images were taken at 3 days post fertilization (DPF). c shows the representative region where cells were quantified with a corresponding schematic showing the parameters (3 rows left, 5 rows right). c′ Average number of Sox10⁺ cells counted across both groups (N = 10 per group) at 3 DPF. P-value pertains to the statistically significant difference between the RC group and the MOs (*p = 0.04). d qPCR expression of sox10 (N = 24 total) in RC and MO groups at 3 DPF (***p = 0.0005). qPCR was performed on two independent occasions, each represented by a gray dot. Each biological replicate had a minimum of 12 larvae/group for a total n = 24

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ BMC Dev. Biol.
