Fig. 3

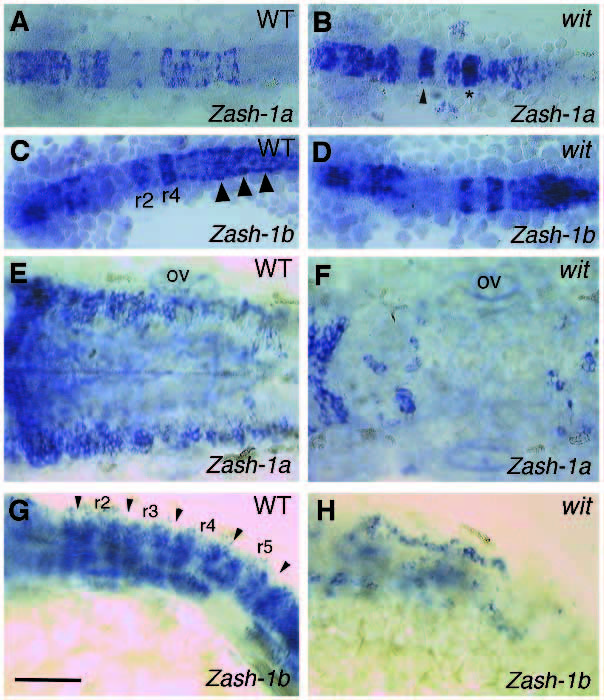

The expression pattern of two zebrafish achaete-scute homolog genes in white tail. Zash-1a expression in wild-type (A) and mutant (B) embryos at the 17-somite stage. The presumptive mhb (arrowhead) and presumptive r3 (asterisk) are indicated. Zash-1b expression in wild-type (C) and mutant (D) embryos at 15-somite stage. The expression in the spinal cord (triangles) is indicated. Wildtype (E) and mutant (F) embryos at 26 hpf labeled with Zash-1a RNA probe. Wildtype (G) and mutant (H) embryos at 26 hpf labeled with Zash- 1b RNA probe. ov, otic vesicle; r(n), rhombomere (n). Bar, 320 µm (A-D); 100 µm (E-H).
