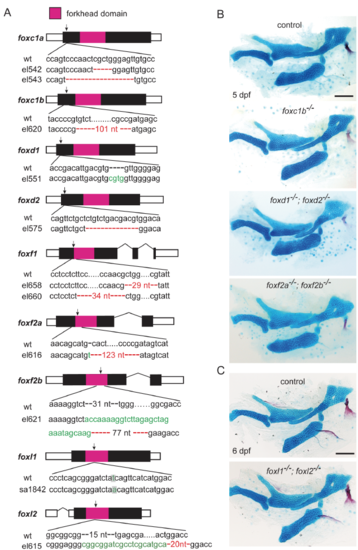

Fox mutant alleles (A) Schematics of Fox alleles generated for this study. The predicted protein products are shown in black with the Forkhead DNA-binding domains in magenta. For the targeted DNA sequences, series of red dashes indicate deletions, and green letters indicate insertions. For the foxl1sa1842 generated by the Sanger Center, the nonsense mutation (t > a) is indicated in green. Sites where the predicted proteins are truncated by mutations are indicated with arrows. (B-C) Unilateral dissections of the skeletons of the first two arches stained with Alcian Blue (cartilage) and Alizarin Red (bone) at 5 dpf (B) or 6 dpf (D). No defects were seen in at least 20 larvae examined for each genotype. Scale bars = 25 μm. |
