Fig. 4

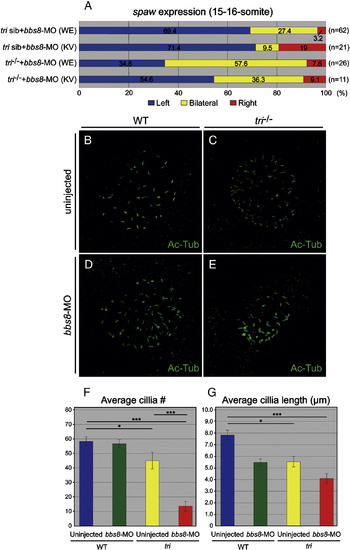

BBS8 and Vangl2 are required for normal Kupffer′s vesicle structure. A) Percentage spaw expression (at 15-16-somite) after bbs8-MO injection targeted to the whole embryo (WE) or the Kupffer′s vesicle (KV). Expression was randomised under both conditions. B-E) Visualisation of cilia (Ac-Tub) in the Kupffer′s vesicle in 8-somite embryos in bbs8-MO injected tri embryos. The number and/or length of the cilia are altered in the experimental conditions. F-G) Table depicting average cilia numbers and cilia length (μm) in injected and uninjected tri embryos.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	vangl2^m209/m209 TL + MO3-ttc8 vangl2^m209/m209 + MO3-ttc8
Knockdown Reagent:	MO3-ttc8
Observed In:	cilium assembly Kupffer's vesicle motile cilium Kupffer's vesicle development
Stage:	5-9 somites
