FIGURE 5
- ID
- ZDB-IMAGE-260512-15
- Publication
- Nieoczym et al., 2026 - Studies on the anticonvulsant potential of 6-gingerol, an active ingredient of ginger rhizome
- All Figures
- Figures for Nieoczym et al., 2026
|
Figure Caption

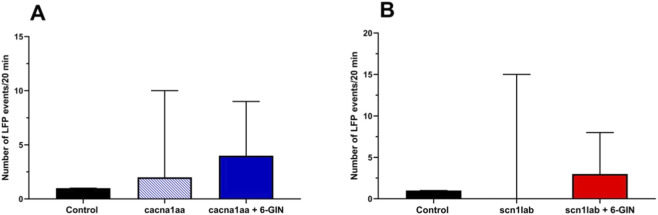

FIGURE 5 Effect of 6-gingerol on number of LFPs from the optic tectum of cacna1aa and scn1lab morphants. Zebrafish larvae were incubated with 6-gingerol (37.5 µM) or vehicle for 22 h and subsequently LFPs were registered during 20 min, at 4 dpf zebrafish larvae. The control group was the same in both experiments. Data are presented as number of epileptiform-like events (median + 95% confidence limits). Results were analyzed using Kruskal–Wallis test: (A), KW = 3.546, p = 0.1699; (B), KW = 1.388, p = 0.4995. 6-GIN - 6-gingerol.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Front Pharmacol
