FIGURE 2
- ID
- ZDB-IMAGE-260512-12
- Publication
- Nieoczym et al., 2026 - Studies on the anticonvulsant potential of 6-gingerol, an active ingredient of ginger rhizome
- All Figures
- Figures for Nieoczym et al., 2026

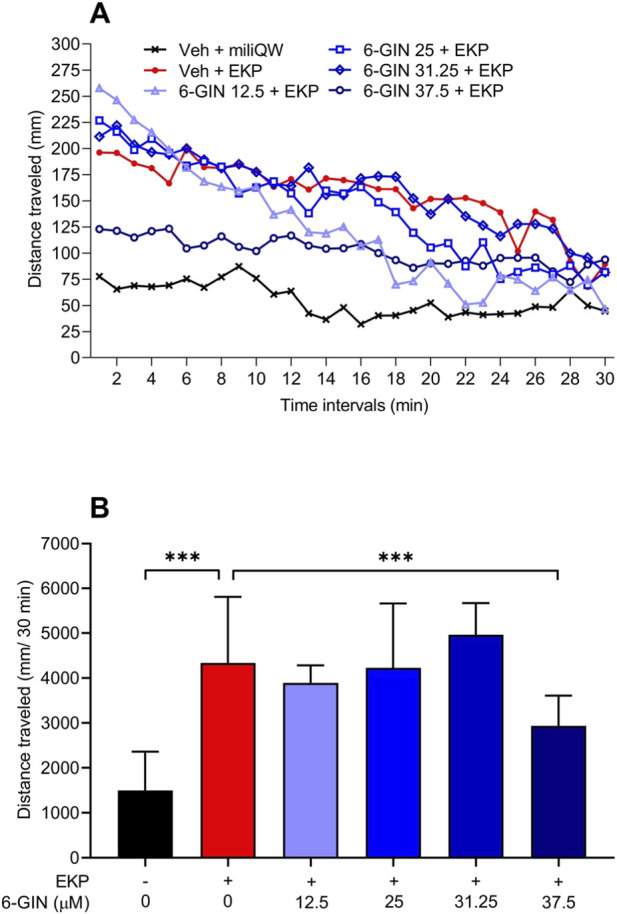

FIGURE 2 The effect of 6-gingerol (concentrations 12.5–37.5 μM) on hyperlocomotion in the EKP-induced (200 μM) seizure model in larval zebrafish. After 22 h long incubation in different 6-gingerol concentrations, larvae were exposed to acute dose of EKP, and after 5 min delay analysis started. Results of the experiments are shown as distance traveled in 2 min-long time bins (A) Time-bin analyses are presented descriptively; statistical inference marked was based on total distance traveled within 30 min of the assay (B). Data on total distance traveled within 30 min (B) were analyzed using Kruskal–Wallis test with Dunn’s multiple comparison test: KW = 71.91, p < 0.0001. Data are shown as median with 95% confidence limits (n = 39–48 per group) ***p < 0.001. 6-GIN, 6-gingerol; EKP, ethyl 2-ketopent-4-enoate; miliQW, miliQ water; Veh, vehicle.
