ZFIN Image: van der Veen et al., 2026, FIGURE 6


Figure Caption

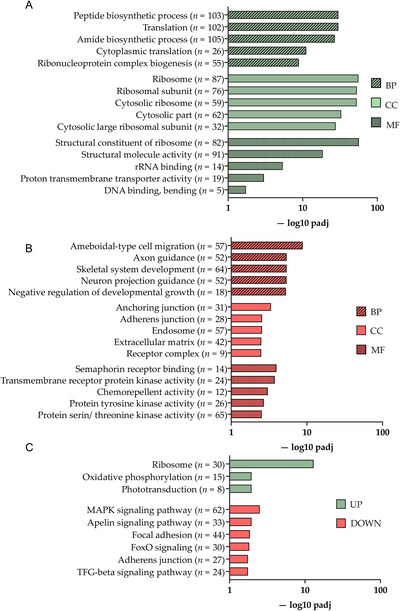

FIGURE 6

Delivery of translation‐blocking morpholino oligos targeting rs1a and rs1b mRNA results in significant downregulation of axon guidance and adherens/anchoring junctions at 72 h post‐fertilization. Following RNA sequencing, Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway, and Gene ontology (GO) enrichment analyses were performed. A: the top 5 most significantly upregulated GO terms for biological processes (BP; blue bars), cellular components (CC; green bars), and molecular function (MF; red bars). n refers to the number of DEGs mapped to the term. B: the top 5 most significantly downregulated GO terms for BP (blue), CC (green), and MF (red). n refers to the number of DEGs mapped to the term. C: all significantly upregulated (green bars) and downregulated (red bars) KEGG pathways. n refers to the number of DEGs mapped to the pathway. UP = upregulated, DOWN = downregulated. Padj = adjusted p‐value.
