Fig. 1

ID: ZDB-IMAGE-250602-6
Publication: Gupta et al., 2025 - Mutations in the microexon splicing regulator srrm4 have minor phenotypic effects on zebrafish neural development
All Figures: Figures for Gupta et al., 2025


Figure Caption

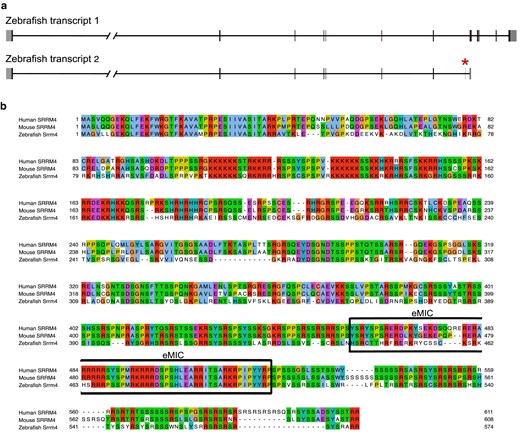

Fig. 1 Zebrafish srrm4 has 2 annotated transcript variants and encodes a protein with a conserved eMIC domain. a) srrm4 transcript variants. Transcript variant 1 (NM_001423807.1) encodes the longer isoform of the Srrm4 protein, which contains the eMIC domain. Transcript variant 2 (XM_021476416.1) has a 16 nt microexon near the 3′ end that creates a frame-shift, resulting in a truncated protein lacking the eMIC domain. The asterisk indicates microexon. Gray shading indicates untranslated regions. b) Sequence alignment of longest isoforms of human, mouse, and zebrafish SRRM4/Srrm4 proteins. The black box outlines the conserved eMIC domain.
