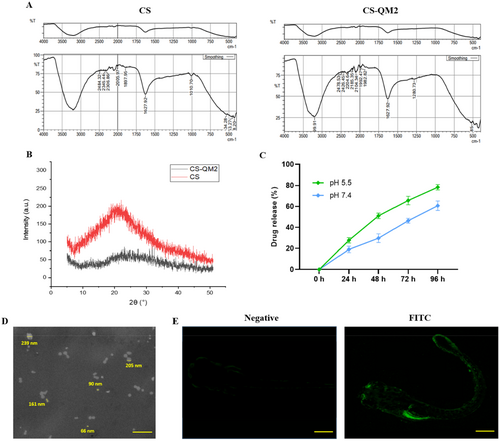

Fig. 2 Characterization of CS-QM2 nanoparticle and its distribution in zebrafish larvae. (A) FTIR spectra of CS and CS-QM2 nanoparticles. (B) XRD patterns for CS and CS-QM2 nanoparticle. (C) Drug release efficiency of CS conjugate under acidic and physiological conditions. (D) SEM analysis of CS-QM2 nanoparticles produced by ionotropic gelation; scale bar: 1 µm (E) Distribution of FITC tagged CS-QM2 nanoparticle in zebrafish larvae; scale bar: 350 µm.
