Figure 3

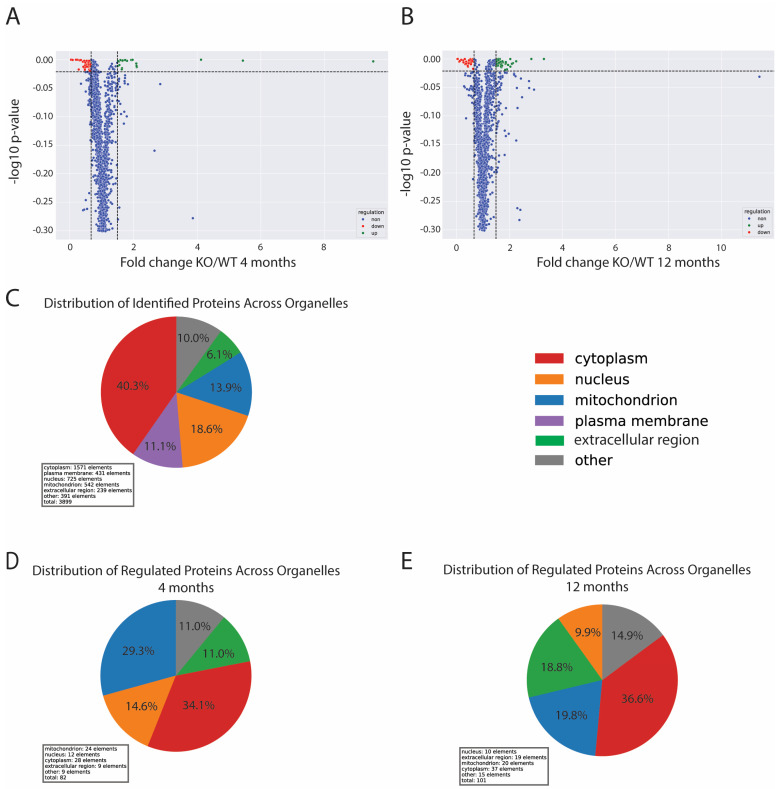

Changes in the muscle proteomes of early and late adults. Figure shows volcano plots of the distribution changes in 4-month-old (A) and 12-month-old (B) DJ-1-knockout zebrafish muscles compared to their respective wild-types. Proteins with significant (p < 0.05) changes larger than 1.5-fold are indicated in green (upregulated) and red (downregulated). Proteins not regulated are in blue. (C) Cellular distribution of total identified proteins used for quantitation. Cellular distribution of regulated proteins when comparing DJ-1-knockout muscles and wild-type muscles at 4 (D) and 12 (E) months.
