ZFIN Image: Abate et al., 2024, Figure 6


Figure Caption

Figure 6

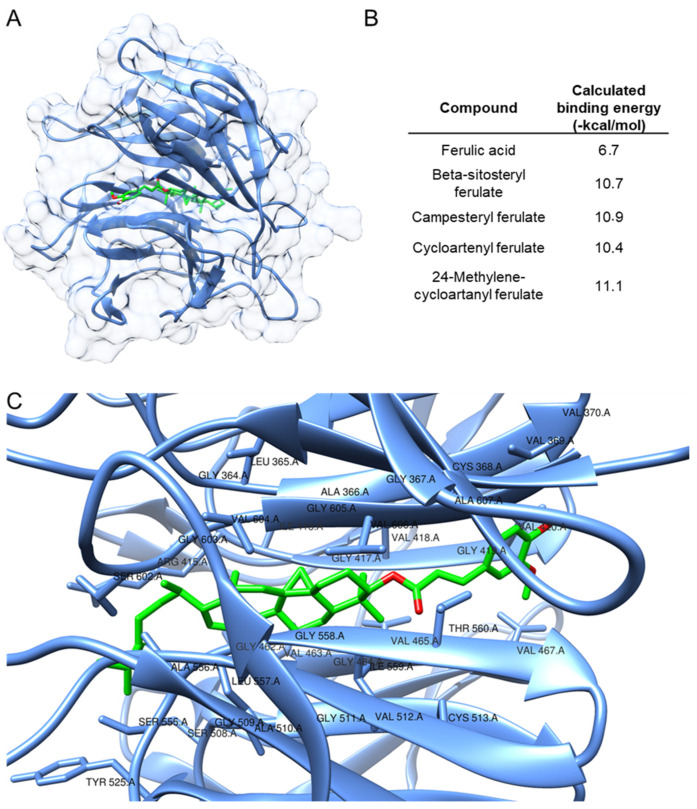

Interaction motif predicted by molecular docking for 24–methylenecycloartanyl ferulate (green), one of the components of ORY, with Keap1 (A): the compounds inserted below the hot spots of the Keap1 cavity (24–methylenecycloartanyl ferulate is depicted as a representative example). Calculated binding energy values retrieved for the studied compounds and ferulic acid were introduced as references (B). Detailed view of the binding site of Keap1: 24–methylenecycloartanyl ferulate is depicted in green (C). Interacting residues (<5 Å) have been labeled.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Antioxidants (Basel)
