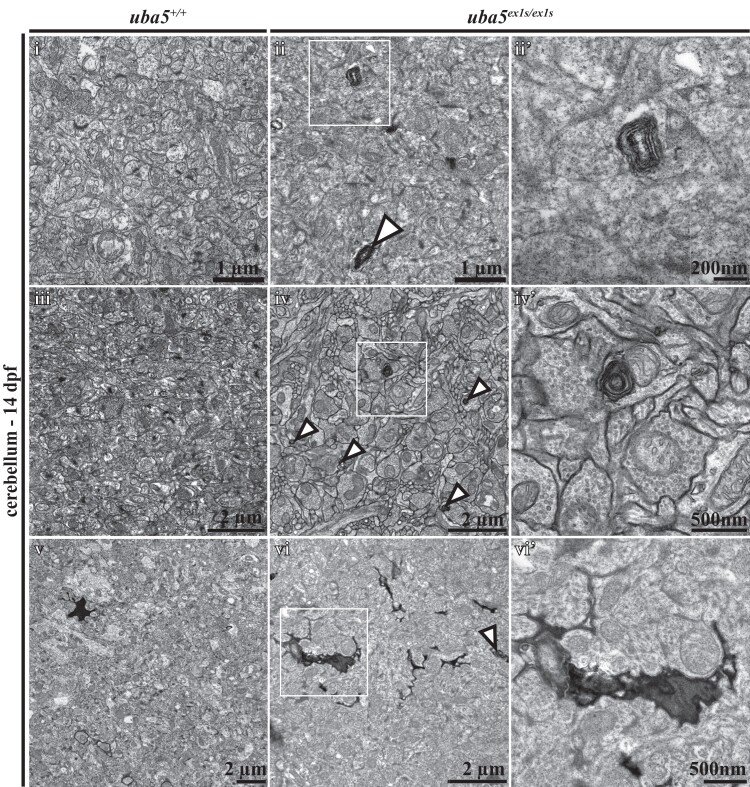

Ultrastructural analysis of the cerebellum at 14 dpf shows abnormal findings in uba5^ex1s/ex1s animals. Membranous swirls (ii, ii′), membrane whorls inside neurons that are indicative of mitochondrial degradation (iv, iv′) and cytoplasmatic condensation (vi, vi′) are observed in uba5^ex1s/ex1s mutants (arrowheads) compared to uba5^+/+ (i, iii, v). (ii′, iv′, vi′). A higher magnification view of boxed areas.
