Figure 3

ID

ZDB-IMAGE-230629-13

Genes

Publication

Erickson et al., 2023 - Regionalized Protein Localization Domains in the Zebrafish Hair Cell Kinocilium

All Figures

Figures for Erickson et al., 2023


Figure Caption

Figure 3

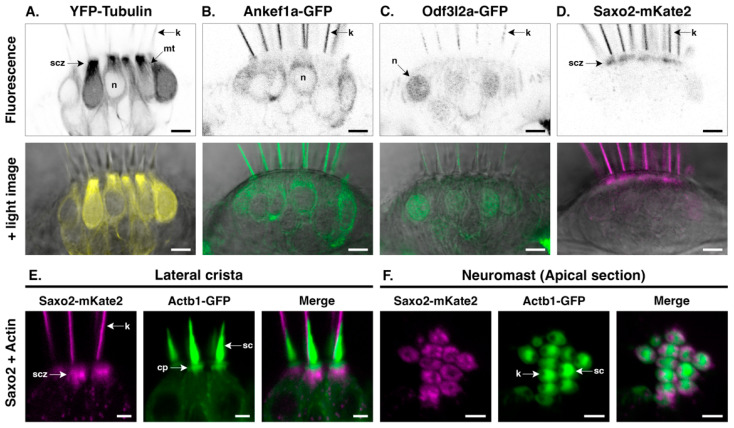

Distinct protein localization patterns in the hair cell soma. (A–D) Details of YFP-TUBA, Ankef1a-GFP, Odf3l2a-GFP, and Saxo2-mKate2 in the hair cell body at 5–6 dpf. The top panels are black-and-white representations of the fluorescence channel and the lower panels overlay the fluorescence channel with the corresponding light image. (E,F) Saxo2-mKate2 (magenta) accumulations in the apical part of the hair cell body in cristae and neuromasts. GFP-tagged beta-actin is shown in green. cp = cuticular plate; k = kinocilium; mt = microtubule; n = nucleus; sc = stereocilia; scz = subcuticular zone. Scale bars are 5 µm in (A–D) and 2.5 µm in (E,F).
