Figure 5—figure supplement 1.

ID: ZDB-IMAGE-220324-45
Publication: Saraswathy et al., 2022 - The E3 Ubiquitin Ligase Mindbomb1 controls planar cell polarity-dependent convergent extension movements during zebrafish gastrulation
All Figures: Figures for Saraswathy et al., 2022


Figure Caption

Figure 5—figure supplement 1. Mib1 is dispensable for Wnt5b-induced Ryk degradation.

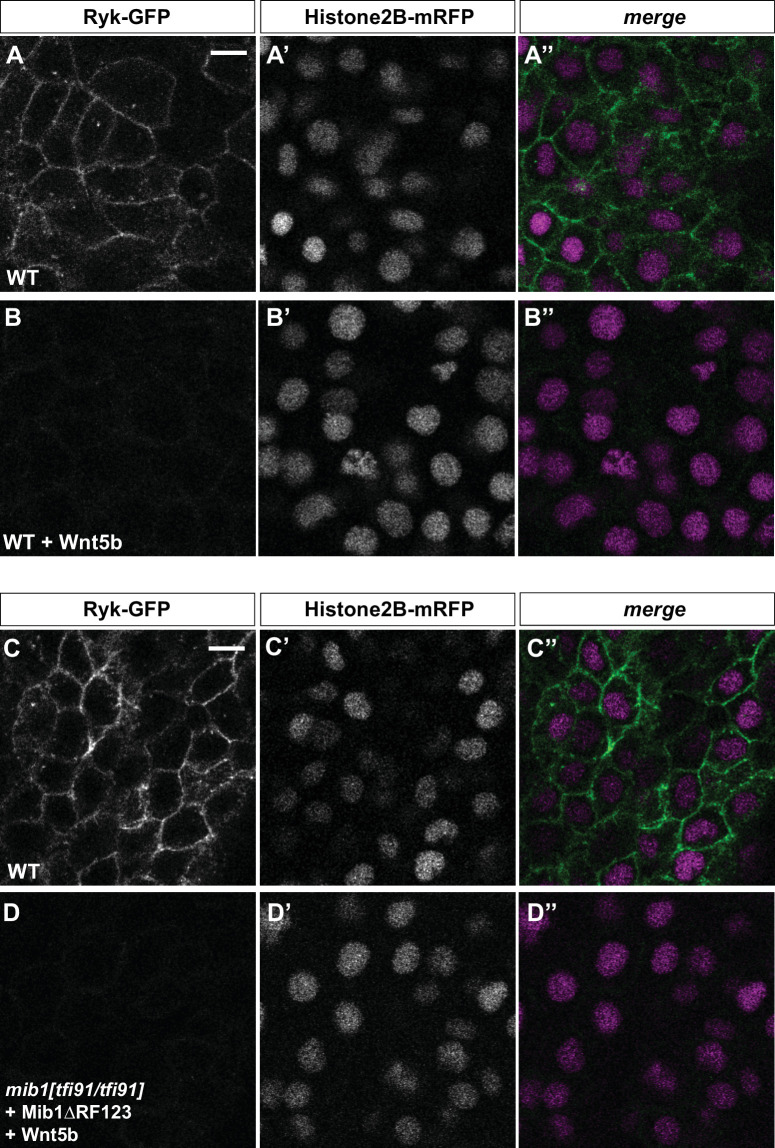

(A,B) 17 out of 18 Wnt5b-injected embryos present severely reduced Ryk-GFP signals compared to WT controls (n = 12). (C,D) A similar Wnt5b-dependent decrease of Ryk-GFP levels is observed in mib1^tfi91 homozygous mutants that were additionally injected with dominant-negative Mib1ΔRF123 (n = 14 mutant and n = 16 WT control embryos). All pictures depict dorsal views of 90% epiboly stage embryos, anterior up. The Histone2B-mRFP signal (A’-D’) was used to ascertain that control and Wnt5b-expressing embryos had received comparable amounts of injected material. Scalebars: 10 µm.
