Fig. 3

ID: ZDB-IMAGE-210311-10
Publication: Castellanos et al., 2021 - Knockdown of hspg2 is associated with abnormal mandibular joint formation and neural crest cell dysfunction in zebrafish
All Figures: Figures for Castellanos et al., 2021


Figure Caption

Fig. 3

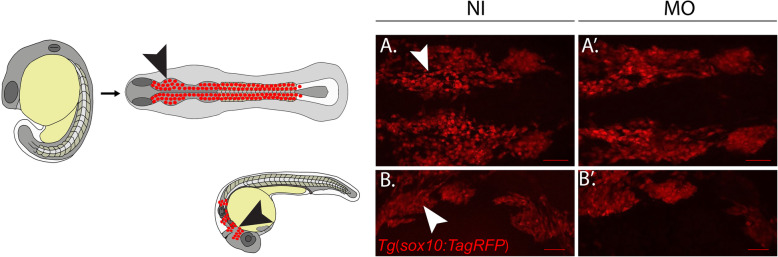

Early neural crest cell (NCC) migration and specification are normal in morphants. a-a’ Non-injected (NI) Tg(sox10:TagRFP) larvae and hspg2 morpholino injected Tg(sox10:TagRFP) larvae (MO) (N = 6 and N = 4, respectively) were staged and fixed at the 18-somite stage. Images are scaled at 200 μm and demonstrate two lateral streams of Sox10⁺ migrating NCCs. b-b′ NI and MO larvae (N = 8 and N = 16 respectively) were staged and fixed at the Prim-5 stage. Images are scaled at 200 μm and demonstrate Sox10⁺ NCCs in the pharyngeal arches. No significant changes were found between the two groups at either timepoint. Schematic represents the two migratory NCC streams in a zebrafish larvae at 18 somites and the localization of the CNCCs in the four pharyngeal arches at the Prim-5 stage
