Fig. 10

Fig. 10

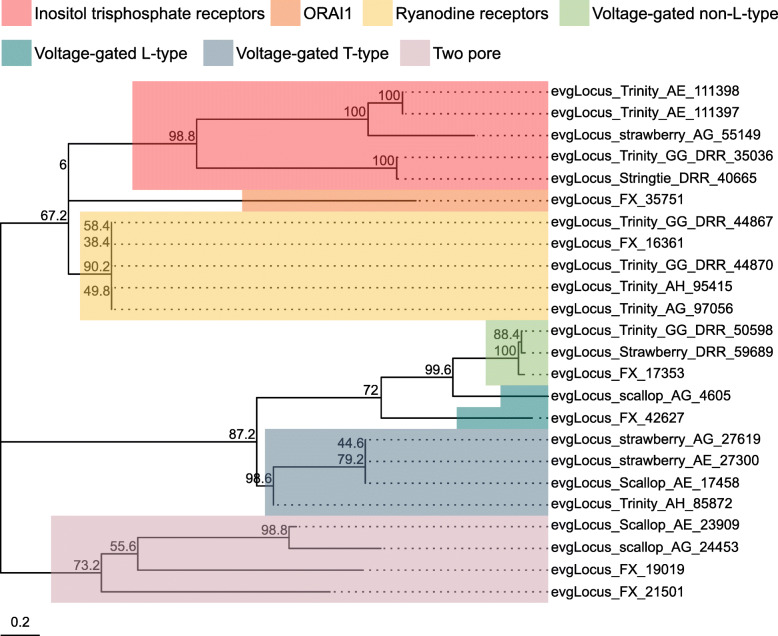

Ca²⁺ channel subtypes and families identified in the L. stagnalis CNS transcriptome assembly. The tree was generated as described in Fig. 8, where the analysis involved 24 amino acid sequences and yielded a total of 4018 positions in the final dataset, resulting in a tree with highest log likelihood of − 47,232.52. The accession numbers and BLAST information of transcripts represented in this tree are provided in Table S24. A diverse set of putative L. stagnalis Ca²⁺ channel subtypes and families are identified, including subtypes not yet cloned from L. stagnalis, such as Orai-2
