Fig. 1

ID: ZDB-IMAGE-160715-37
Publication: Frohnhöfer et al., 2016 - Spermidine, but not spermine, is essential for pigment pattern formation in zebrafish
All Figures: Figures for Frohnhöfer et al., 2016


Figure Caption

Fig. 1

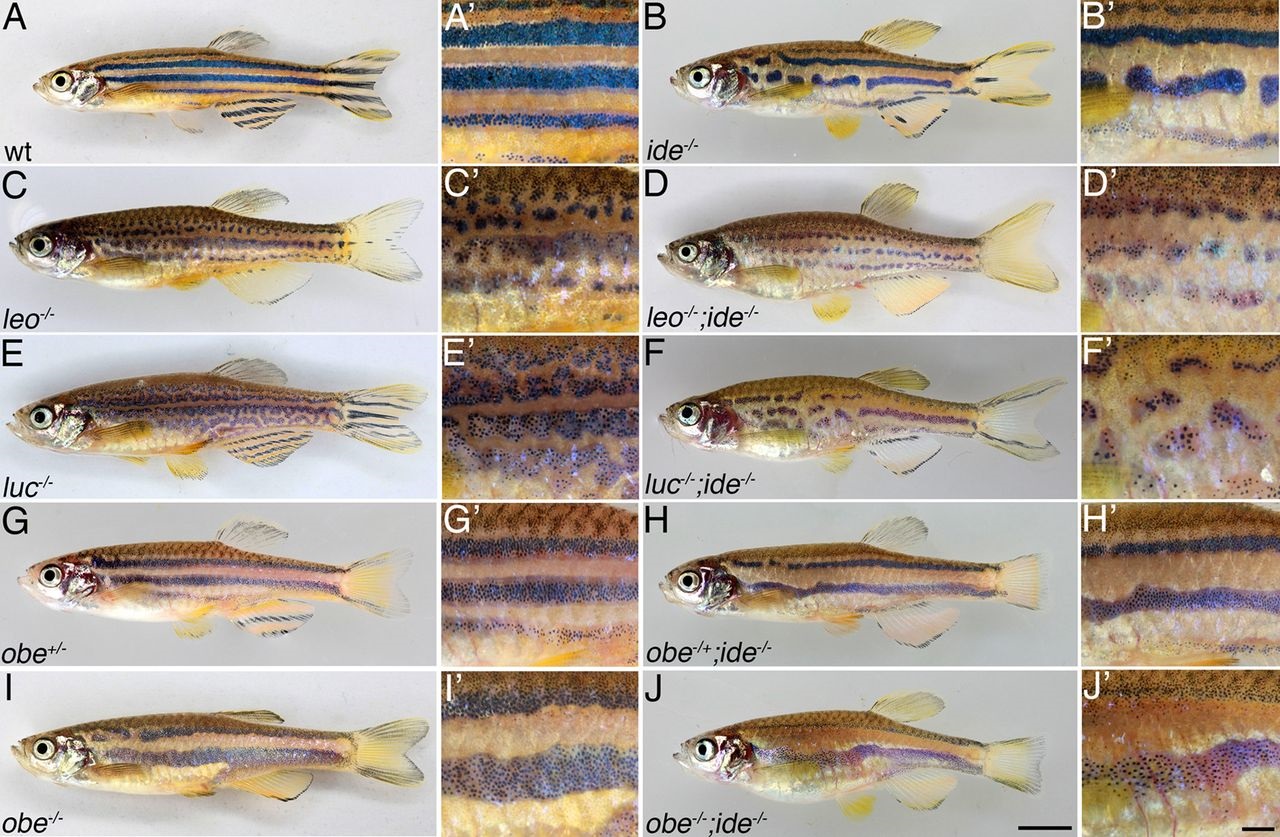

idefix mutants show defects in pigment pattern formation. Wild-type (A,A′) zebrafish show a stereotypic pattern of horizontal dark and light stripes on their flanks and on the anal and caudal fins. In ide mutants (B,B′) the light stripe areas are expanded, there are fewer and less regular dark stripes, which frequently show interruptions. The striped pattern in the anal and caudal fins is also disrupted in ide mutants. Double mutants of ide with leo (C-D′), luc (E-F′) or obe heterozygous (G-H′) and homozygous (I-J′) show a superimposition of both phenotypes. The light stripe areas are expanded in all cases. Scale bars: 5mm J, 1mm in J′.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Biol. Open
